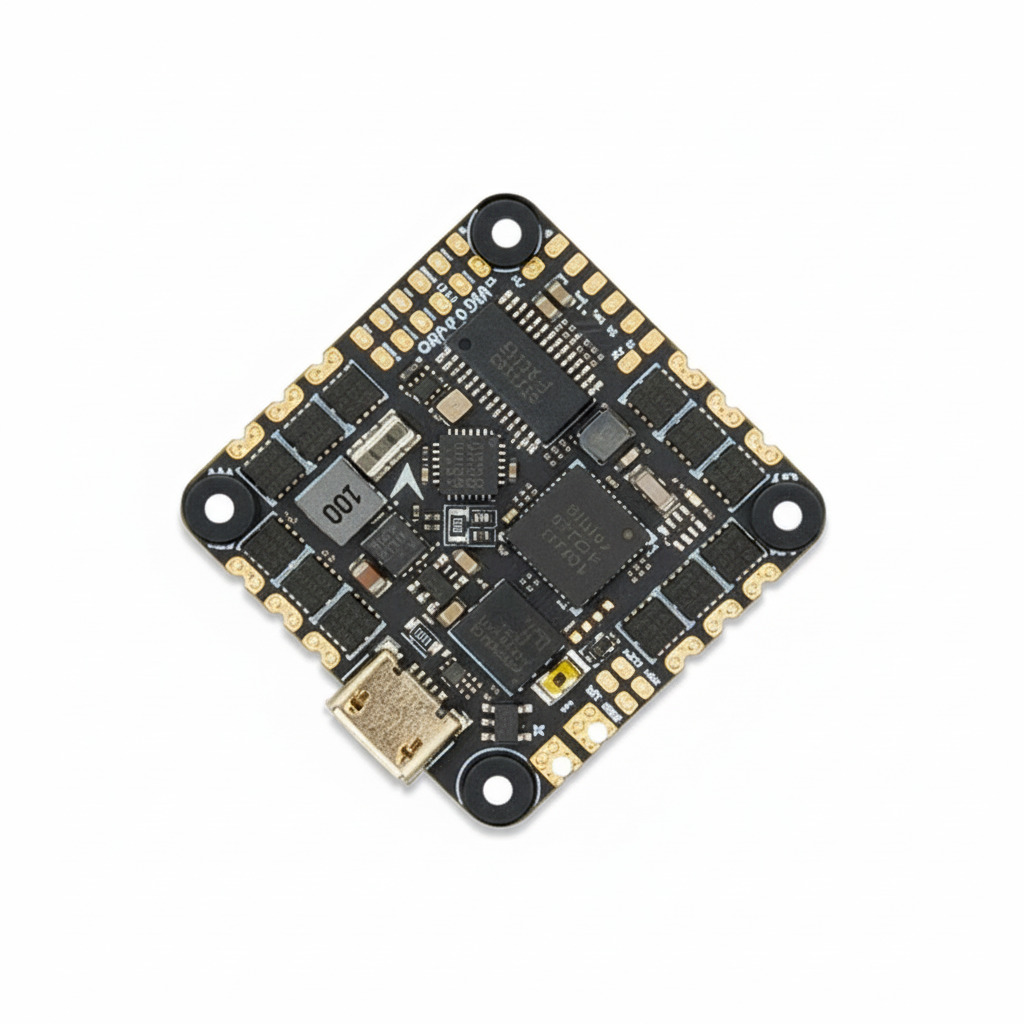

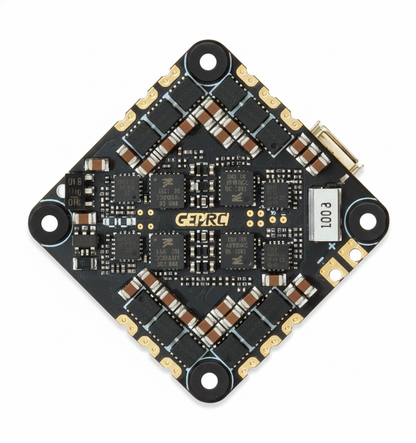

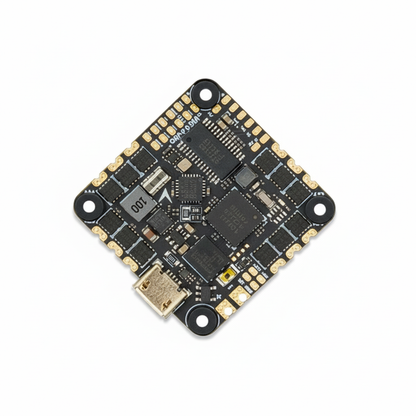

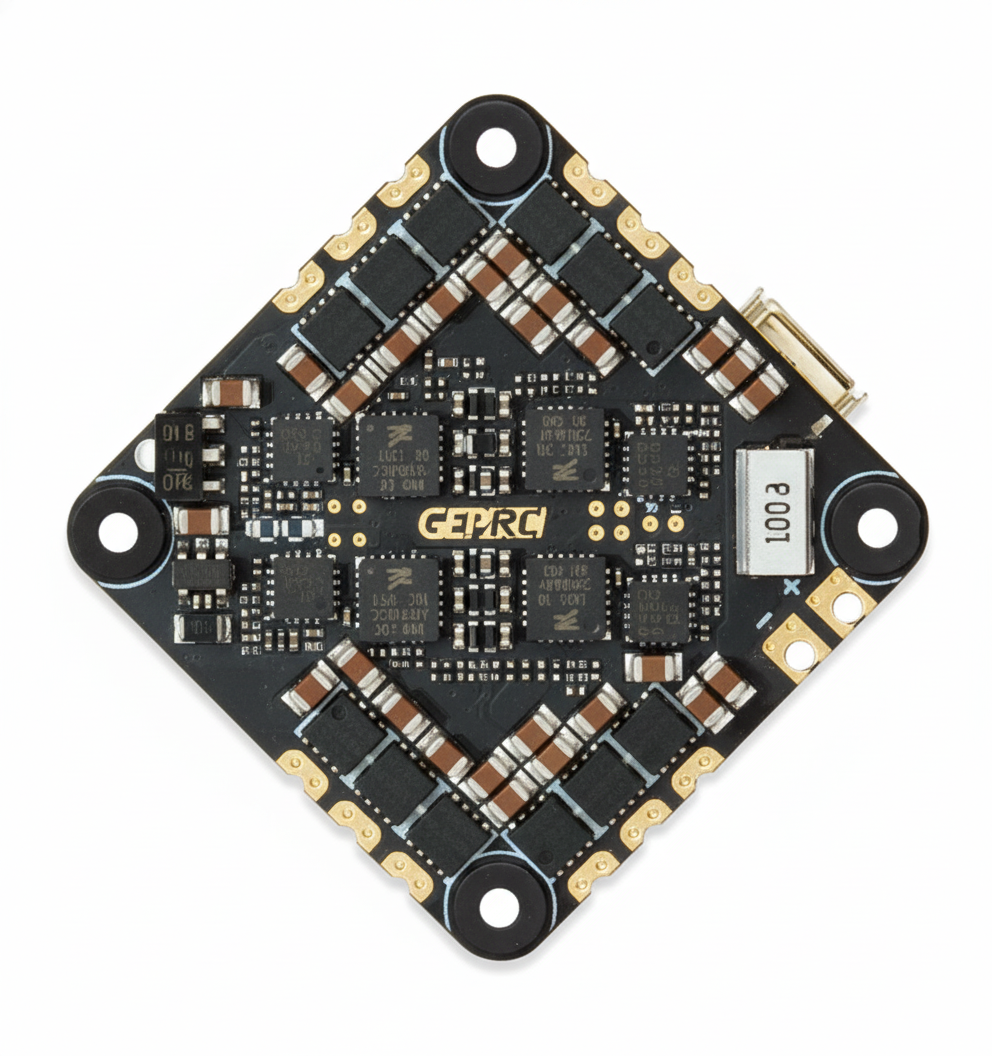

GEPRC-GEP F411 35A AIO FPV STACK

GEPRC-GEP F411 35A AIO

All-in-one performance in a lightweight board — the F411 35A AIO integrates a powerful F4 processor, 35A BLHeli_S ESC, and clean gyro data handling. Ideal for micro quads and whoops up to 4S. Compact, stable, and easy to wire.

Technical Specifications:

• Model: GEP-F411-35A AIO

• MCU: STM32F411

• IMU: ICM42688-P(SPI)

• Target: GEPRC_F411_AIO

• OSD: Betaflight OSD w/ AT7456Ev

• UART Ports: T1 R1 / T2 R2

• Beep: YES

• LED: YES

• USB Connector: micro USB

• ESC MCU: 8BB21F16G

• Intergrated LC Filter

• Continue Current: 35A

• Burst Current: 40A(10s)

• Input Voltage: 2~6S (LIPO Battery)

• ESC Protocol: Dshot300/600,Oneshot,Multishot

• Blackbox:16Mb

• ESC Target: G_H_30 BLS

• Size: 32x32mm Board

• Mount Holes: 25.5×25.5mm

• Weight: 8.8g

Features:

• BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.

• Mainstream STM32F411 FC and runs stably.

• BMI270 gyroscope with 8K sampling frequency.

• Rich external ports, it supports buzzer and LED light function.

• 25.5mm * 25.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.
