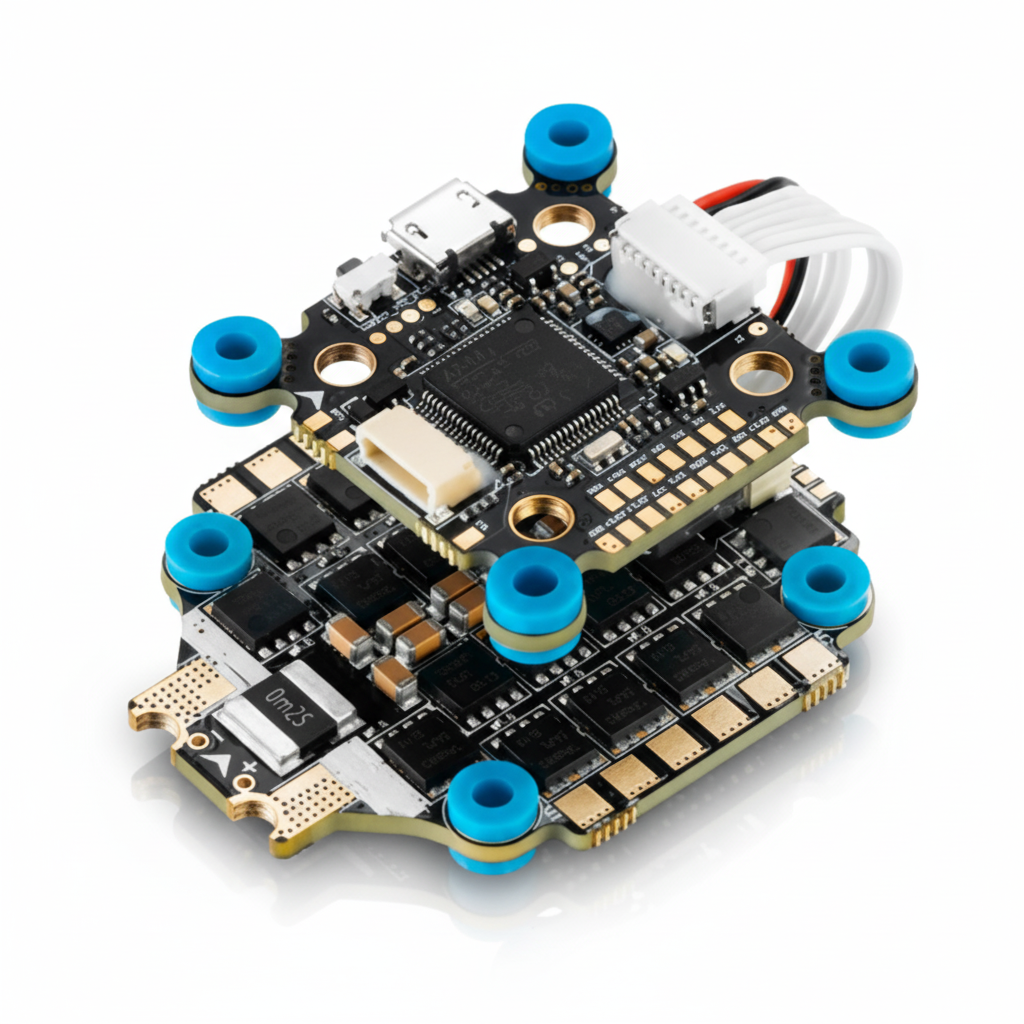

HOBBYWING XRotor Micro ESC & FC FPV Combo

HOBBYWING XRotor Micro ESC & FC FPV Combo

Trusted by pros, the XRotor Micro Combo offers precision and power with F7 flight control and 45A 4-in-1 ESC. Known for extreme reliability, efficient heat dissipation, and clean signal handling. Ideal for competition-grade FPV drones.

Technical Specifications :

• Processor: STM32F722 (216 MHz)

• IMU (Gyroscope/Accelerometer): MPU6000 (connected via SPI)

• Barometer: BMP280

• OSD: Integrated Betaflight OSD

• BEC Output: 5V @ 1.5A , 10V @ 1.5A (for VTX/Camera)

• UART Ports: 5 UARTs

• I2C Port: 1×

• DShot Support: DShot150 / DShot300 / DShot600

• Mounting Options: 20×20 mm and 30.5×30.5 mm (adapters typically included)

• Continuous Current: 45A per channel (45A variant) , 65A per channel (65A variant)

• Peak Current (10s): 60A per channel (45A variant) , 80A per channel (65A variant)

• Input Voltage: 3–6S LiPo

• BEC Output: None (OPTO design; requires external BEC for receiver/FC if needed)

• Firmware: BLHeli_32 (32-bit ARM MCU)

• Signal Protocol Support:

  • DShot150 / DShot300 / DShot600 / DShot1200

  • ProShot1000

  • MultiShot

  • OneShot125

• Telemetry: ESC Telemetry supported via BLHeli_32

• Mounting Holes: 30.5 × 30.5 mm

• Stack Dimensions (L × W × H): Approx. 40 × 36 × 10 mm

• Stack Weight: Approx. 20–25 g (excluding wires)

Features :

• Integrated F7 Flight Controller for superior processing.

• High-performance 4-in-1 ESC (45A or 65A option).

• Pre-flashed with advanced BLHeli_32 firmware.

• Supports DShot1200 and other digital protocols.

• Built-in Betaflight OSD for real-time data.

• Ultra-compact and lightweight stack design.

• Robust 3-6S LiPo input voltage compatibility.

• Multiple UARTs and I2C for peripheral connectivity.

• BEC output for powering FPV camera and VTX.

• Excellent heat dissipation and protection features.
