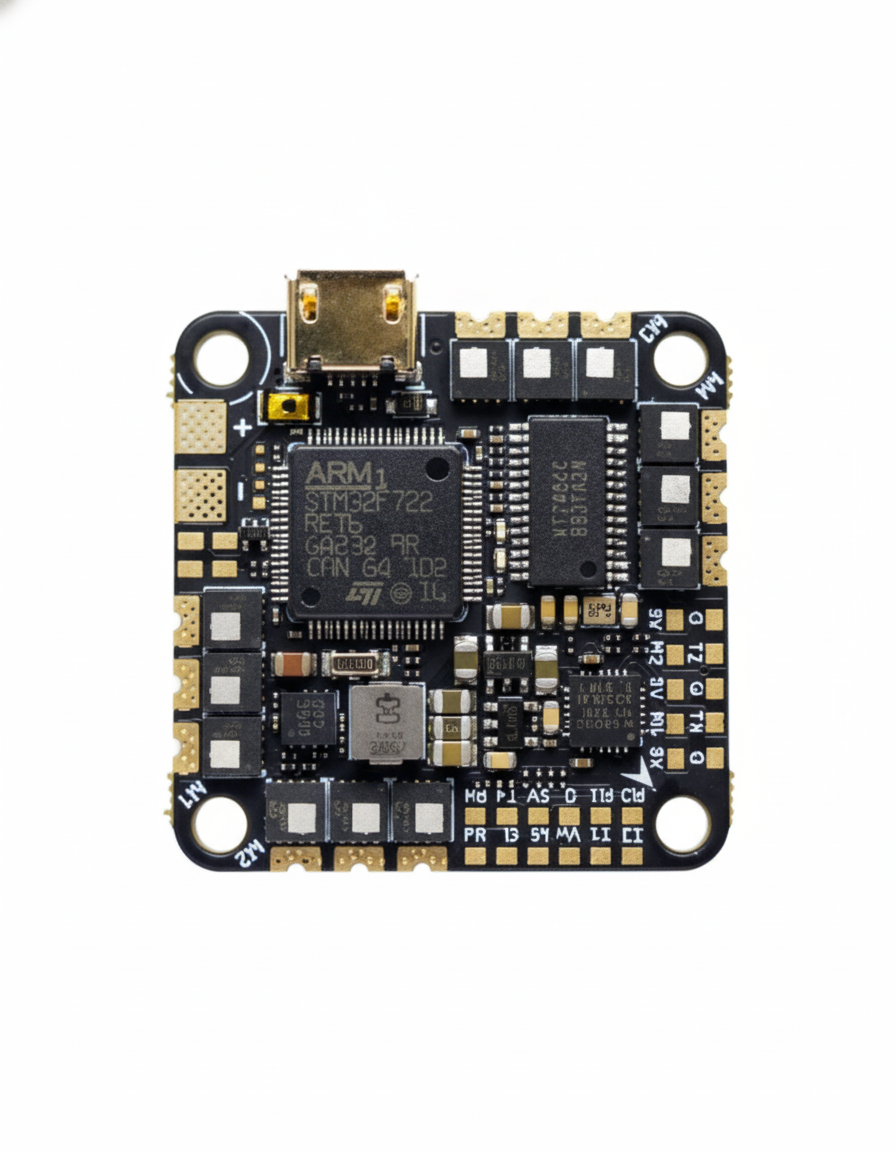

GEPRC GEP F722 45A AIO V2 FPV STACK

GEPRC GEP F722 45A AIO V2
A powerhouse AIO board with F7 processor and 45A BLHeli_32 ESC, supporting 2–6S setups. Delivers smooth control, fast loop times, and reliable current handling. Perfect for freestyle micros and lightweight 5" builds.

Technical Details:

• Model Name: GEP-F722-45A AIO V2

• MCU: STM32F722

• IMU: 42688 gyro/accelerometer(SPI)

• Firmware target: GEPRC_F722_AIO

• OSD: Betaflight OSD w/ AT7456Ev

• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5

• Beeper: YES

• LED: YES

• USB: Micro USB

• BEC output: 5V@1A

• Intergrated LC Filter

• ESC MCU: 8BB21F16G

• Continuous current: 45A

• MAX current: 55A (10s)

• Input: 2~6S

• Supports: Dshot600,Oneshot,Multishot

• BlackBox: 16Mb

• Traget: G_H_30

• Size: 32x32mm Board

• Mounting Hole: 25.5×25.5mm

• Weight: 8.8g

Features :

• MCU:STM32F722,with strong performance and higher computing speed.

• It has 5 full UART ports, which can connect more external devices

• Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .

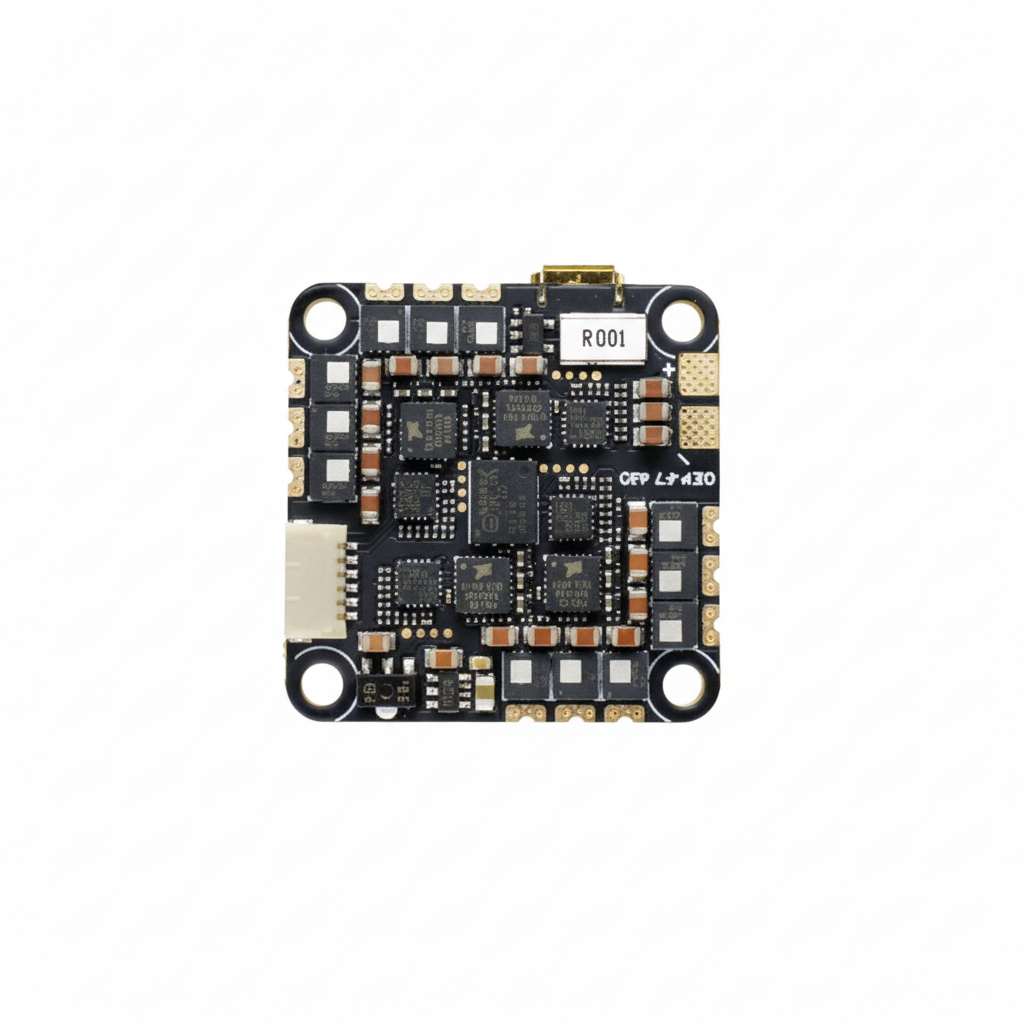

• The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.

• Support OSD parameter adjustment, buzzer, led and other functions.

• 8g ultra light weight

• 5mm * 25.5mm mounting hole, suitable for most frames
