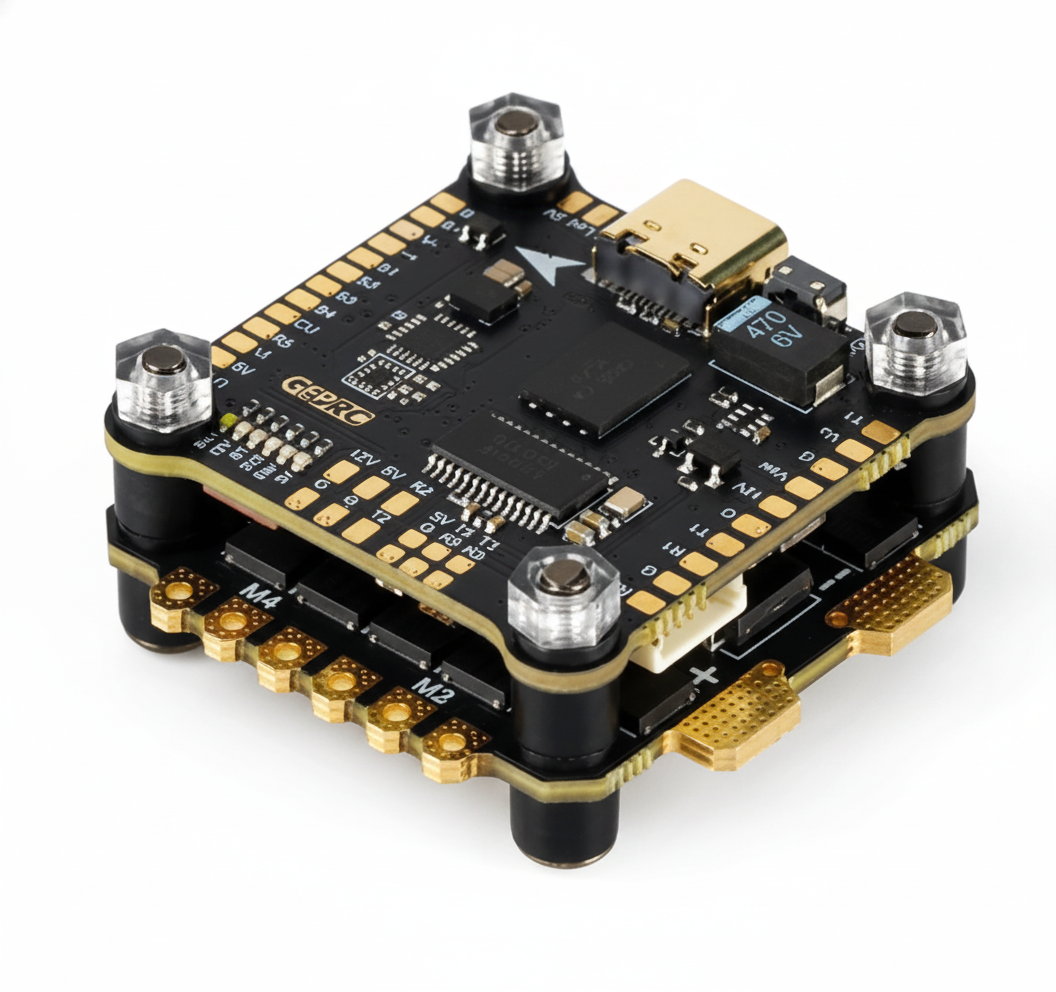

GEPRC SPAN F722 50A BT HD V2 FC+ESC FPV STACK

GEPRC SPAN F722 50A BT HD V2 FC+ESC Stack

Feature-packed stack with Bluetooth tuning, F7 flight controller, and 50A ESC for high-performance quads. Built for HD digital systems with plug-and-play O3/Vista support. Durable, cool-running, and smooth on every throttle punch.

Technical Specifications:

• Model: GEPRC SPAN F722 50A BT HD V2 FC+ESC Stack

• Flight Controller (FC)

  • MCU: STM32F722RET6

  • IMU (Gyro/Accelerometer): ICM42688P (SPI)

  • OSD: Betaflight OSD with AT7456E chip

  • Blackbox: 512MB onboard SD card

  • Barometer: BMP280

  • UARTs: 5

  • BEC Output: 5V/3A, 12V/3A (with integrated LC filtering)

  • Target Firmware: GEPRCF722-BT-HD

  • Input Voltage: 3–6S LiPo

  • USB Connector: Type-C

  • Mounting Pattern: 30.5×30.5mm (M3 holes; reduces to M2 with silicone grommets)

  • Dimensions: 36×36mm

• Electronic Speed Controller (ESC)

  • Model: BL32 50A 96K 4-in-1 ESC

  • MCU: STM32G071 (32-bit, 96KHz)

  • Continuous Current: 50A

  • Peak Current: 55A (5 seconds)

  • Supported Protocols: DSHOT600, PWM, Multishot, OneShot

  • Firmware: GEPRC_G071_4IN1_96K (BLHeli_32)

  • Input Voltage: 3–6S LiPo

  • Galvanometer (Current Sensor): Supported

  • Telemetry: Supported

• Stack (Combined FC + ESC)

  • Approx. Dimensions: 37×45mm (typical for 30.5×30.5mm stack)

  • Weight: ~18–25g (combined)

Features:

• Powerful STM32F722 flight controller.

• Robust 50A 4-in-1 ESC.

• Integrated Bluetooth for wireless configuration.

• Optimized for digital HD FPV systems.

• Includes barometer for altitude hold.

• Built-in Blackbox for data logging.

• Support for 3-6S LiPo battery.

• Fast processing for smooth flight.

• Dedicated plugs for peripherals.

• Enhanced V2 design.
