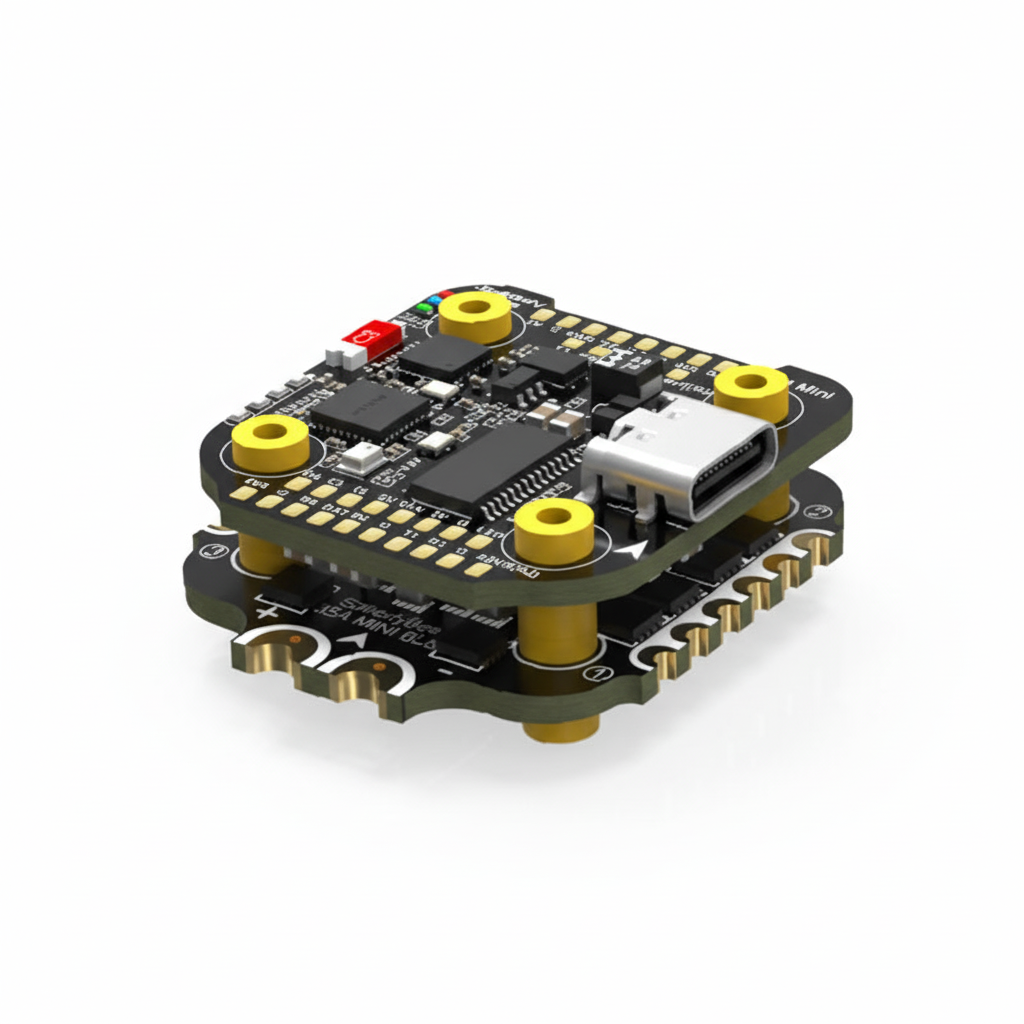

SpeedyBee F405 Mini BLS 35A 20×20 Stack
Compact yet capable, the F405 Mini Stack pairs a powerful F4 FC with 35A BLHeli_S ESC, all in a 20×20 layout. Includes WiFi/Bluetooth configuration via SpeedyBee App. Perfect for 3"–5" lightweight builds.
Specification:
| Item Type: | Accessories |
|---|---|
| Flight Controller | SpeedyBee F405 Mini |
| Battery Input | 3-6S |
| Mounting Hole (mm) | 20 x 20 |
Features:
- Upgraded F405 flight controller chip with Bluetooth for wireless Betaflight tuning.
- 35A BLHeliS Mini ESC with TVS transient suppression diode for enhanced protection.
- Dual BEC setup with 5V 2A and 9V 3A outputs.
- Battery capacity indicator for instant battery level monitoring.
- Supports DJI Digital Video Transmitters for seamless integration.
- Stable and strong current output for smooth flight performance.
- MCU STM32F405
- IMU(Gyro) ICM42688P
- USB Port type Type-C
- Barometer Built-in OSD Chip AT7456E chip
- Power Input 3-6S LiPo.
- The flight controller is powered through the G, V wires of the 8pin harness or G, V pads from the bottom side of the flight controller.
