RADIOMASTER-TX12 CC2500 FPVTRANSMITTER

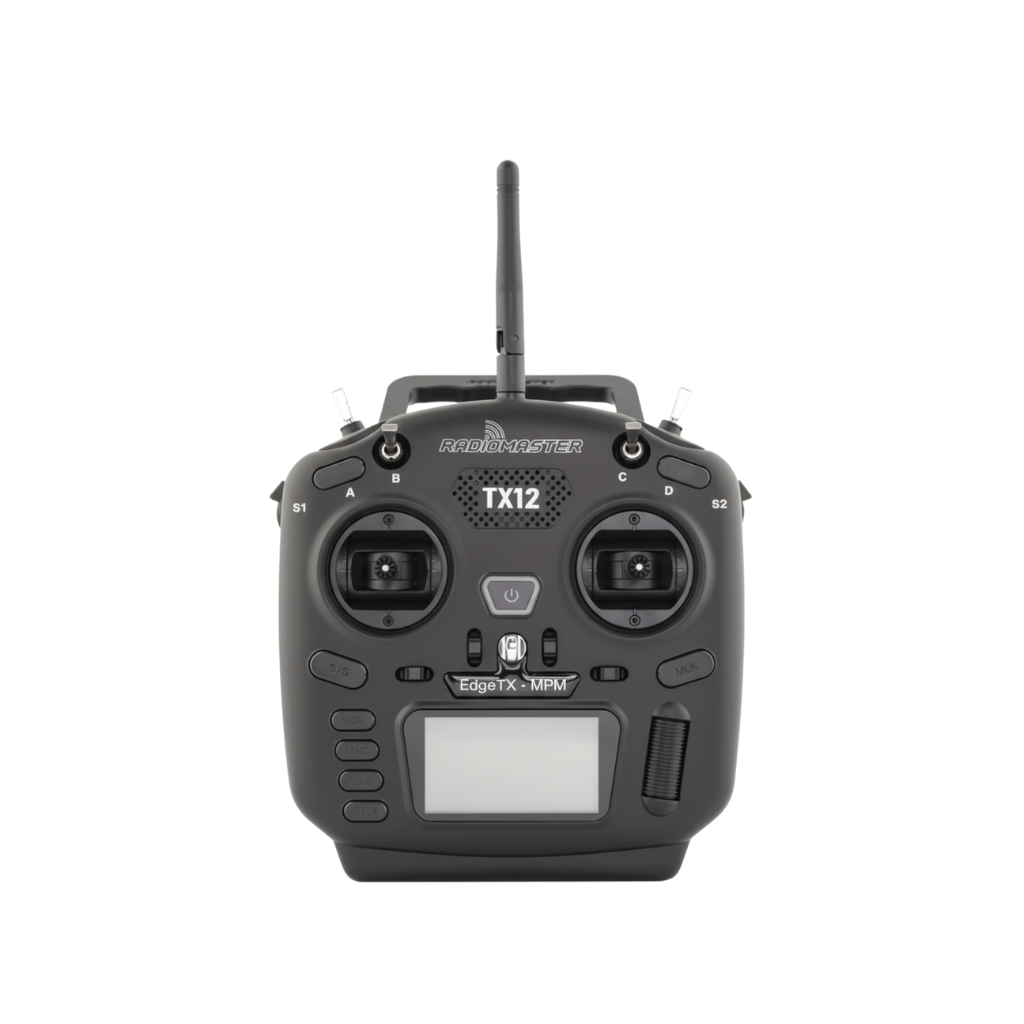

RADIOMASTER TX12 CC2500 Transmitter

A compact and reliable transmitter powered by the CC2500 RF module, compatible with popular protocols like FrSky and Futaba. Features EdgeTX firmware, full-size gimbals, and a lightweight ergonomic design — ideal for travel, beginners, and compact FPV setups.

Features

• Added ExpressLRS Backpack support
• Updated main board design from STM32F207 to STM32F407
• Improved USB-C QC 3.0 Charging
• Precision hall-effect gimbals as standard
• EdgeTX operating system installed from the factory
• Updated rear case with comfortable grips
• Improved S1 / S2 slider grip
• SD Card included
• Provide M1 and M2 modes

Specification

• Item: TX12 Mark II Radio
• Size: 170*159*108mm
• Weight: 363g
• Frequency: 2.400GHZ-2.480GHZ
• RF Chip: ExpressLRS (ELRS) / CC2500
• Working Current: 320mA@8.4V (ELRS) / 180mA@8.4V (CC2500)
• Voltage Range: 6.6-8.4v DC
• Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module) / MPM (RF module)
• Channels: Up to 16 (depending on the receiver)
• Display: 128*64 Monochrome LCD display
• Gimbal: High precision hall gimbals
• External module: JR/FrSKY/Crossfire compatible
• Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
• USB Charging: QC3 USB-C
• SD Card: Included

EdgeTX Operating System

Preinstalled with EdgeTX, the RadioMaster TX12 MKII has cutting-edge software that is constantly evolving and improving. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.
