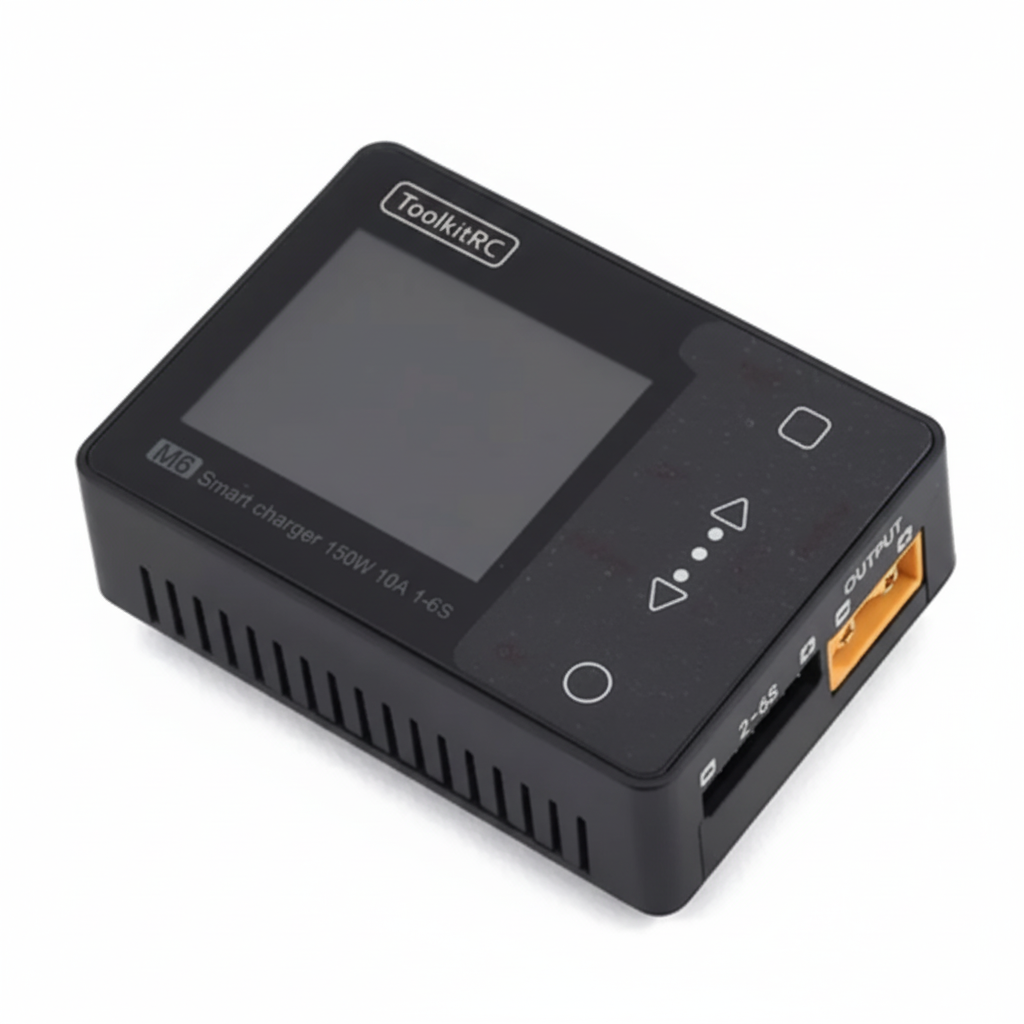

ToolkitRC M6 V2.0 150W 10A FPV Charger, Cell Checker, Servo Tester

ToolkitRC M6 V2.0 150W 10A Charger, Cell Checker, Servo Tester

Compact yet capable, offering 150W / 10A output. Supports LiPo, LiFe, LiHV, and other chemistries with balance precision. Includes servo testing, signal output, and cell checker in one portable design — the perfect field companion.

Toolkit M6 Features

• Battery Charger
• Cell Checker
• Servo Tester
• PWM,PPM, S.Bus Input/output & Receiver tester
• Viable AMP/Volt DC Power supply (Requires external DC input)

Charger Features

• Lithium battery cut-off voltage can be set (TVC function)
• Measure battery voltage, internal resistance, balance
• Measure PWM,PPM, S.Bus signal values @ 1ms accuracy
• Output PWM, PPM, S.Bus standard signal @ 1ms accuracy
• The customizable 1-28V constant output voltage, 1-10A constant output current
• Multi-language optional
• USB 2.1A@5.0V Output (Mobile device charging)
• U-disk firmware upgrade (Slave device)

Charger

• Input voltage: 7.0-28V
• Type of battery: Lipo, LiHV, LiFe, Lion @ 1-6S, NiMh @ 1-16S, Pb @ 1-10S
• Charge power: 150W / Up to 10A
• Discharge power: Recycle Mode: 150W/ Up to 10A Normal Mode: 8W @ Up to 2A
• USB: 2.1A @ 5.0V (Mobile Charging) or USB Firmware updating
• Dimensions: 68x49x26mm
• Weight: 80g
• LCD: 1.8inch TFT RGB, 160×128 Pixel

Measurement

• PWM: 880-2200us @ 20-400Hz
• PPM: 880-2200us*8CH @ 20-50Hz
• SBUS: 880-2200us*16CH @ 20-100Hz
• Voltage: 1.0-5.0V @ 1-6S
• IR: 10-99mR @ 1-6S

Output

• PWM: 500-2500us @ 20-1000Hz
• PPM: 880-2200us*8CH @ 50Hz
• SBUS: 880-2200us*16CH @ 74Hz
• Power: 1-10A @ 1-28V Mode:CC+CV
