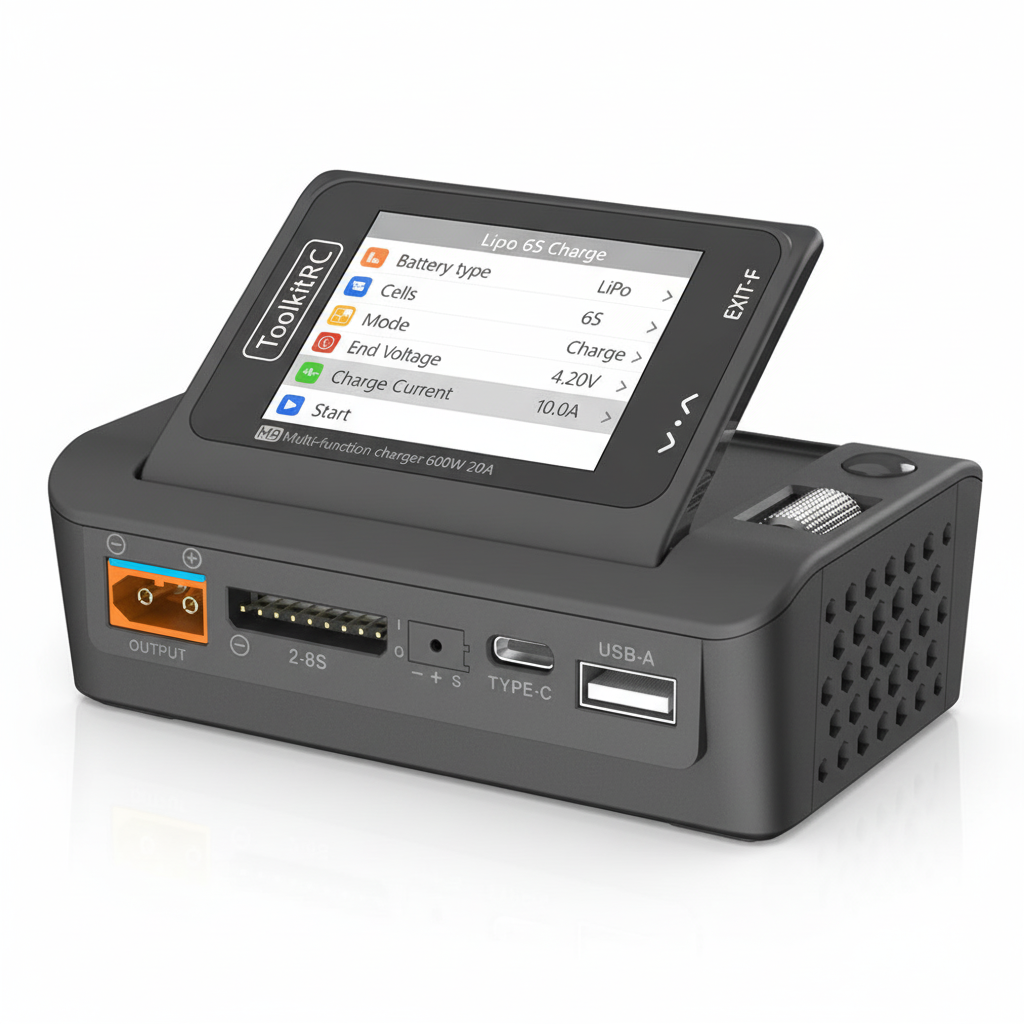

ToolkitRC M9 600W 20A 1-8S Multi-Function DC FPV Smart Balance Charger w/ Voice Alerts

ToolkitRC M9 600W 20A 1-8S Multi-Function DC Smart Balance Charger w/ Voice Alerts

Delivering up to 600W / 20A charging power, the M9 handles 1-8S packs effortlessly. Includes voice alerts, servo tester, signal analyzer, and battery checker in one tool. Precision balance, fast performance, and sleek interface make it a must-have for serious FPV enthusiasts.

Features of ToolkitRC M9 Balance Charger

• Customizable Voice Alerts and Welcome Screen
• DC Output – 600W 2S – 8S Capable
• 2.4″ Multi-Angle Color Display
• Dual USB Fast Charging
• Balance Charger
• Signal Source
• Battery Meter
• Signal Tester
• Watt Meter

Specifications of ToolkitRC M9 Balance Charger

• USB A+C Output: 5-20V@65W PD QC PPS AFC SCP
• Power supply: 1.0-20A@1-35V mode:CC+CV
• Measurer:
  • SBUS: 880-2200us*16CH @20-100Hz
  • PPM: 880-2200us*8CH @20-50Hz
  • PWM: 880-2200us @20-400Hz
• Battery Type: LiPo Battery, LiHV battery, LiFe battery Lion battery, LTO@ 1S – 8S
• Output:
  • SBUS: 880-2200us*16CH @74Hz
  • PWM: 500-2500us @20-1000Hz
  • PPM: 880-2200us*8CH @50Hz
• Discharging Power:
  • 0.1-20A@600W Recycle External
  • 0.1-3A@20W Normal Mode
• Charging Power: 0.1-20A@600W
• LCD: 2.4*IPS RGB 320*240 Pixel
• Balance Current: 1000mA@4.2V
• ESC: 1-20A@1-35V MAX 600W
• NiMh @1-20S Pb @1-10S
• Voltage: 1.0V-5.0V@1-6S
• Input: 7-35V@MAX35A
